Fiberglass Insulation Vs. Rigid Insulation: Which Is Better for Your Needs?

Introduction

In modern construction and industry, the choice of materials is crucial to the success of a project. Whether it is to improve energy efficiency, ensure structural safety, or meet special requirements in a specific environment, the right materials can bring significant advantages.

There are two main forms of insulation materials: Fiberglass Needle Mat and Rigid Insulation. Fiberglass needle mat can not only withstand temperatures up to 500°C or even higher under continuous working conditions, but in some specially treated products, its temperature resistance limit can reach over 1000°C. This material is widely used in automotive exhaust systems, heating duct wrapping, industrial furnace linings and more, making it an ideal solution to extreme temperature challenges.

Rigid insulation boards are known for their higher compressive strength, dimensional stability and waterproof properties. Which one you choose depends on specific project needs, budget constraints, and environmental conditions.

Is fiberglass or rigid insulation better?

Advantages of Fiberglass Insulation

• Cost-effectiveness: Fiberglass is generally cheaper than rigid insulation, making it a more attractive option for projects with limited budgets.

• Easy to install: Fiberglass insulation is soft and easy to cut, making it suitable for irregular or complex installation spaces.

• Good thermal insulation: It can effectively reduce heat transfer and provide good thermal insulation.

• Sound absorption: Fiberglass also has a certain sound absorption effect, which helps to reduce noise.

Advantages of Rigid Insulation

• Higher compressive strength: Rigid insulation boards such as polystyrene, polyurethane foam or rock wool boards have high mechanical strength and are suitable for use as basic insulation layers for floors, roofs or walls.

• Dimensional stability: Rigid insulation materials have less dimensional changes and are not easy to deform when the temperature changes.

• Waterproof performance: Some types of rigid insulation materials have inherent waterproof properties and do not require an additional moisture barrier.

• Durability: Rigid insulation materials are generally more durable and have a longer service life than fiberglass.

Applicable occasions

Fiberglass insulation is more suitable for insulation of indoor walls, ceilings and non-load-bearing structures, especially where sound insulation is required.

Hard insulation materials are more commonly used in infrastructure construction, such as basements, roofs, exterior walls, and other places with high strength requirements, or in humid environments.

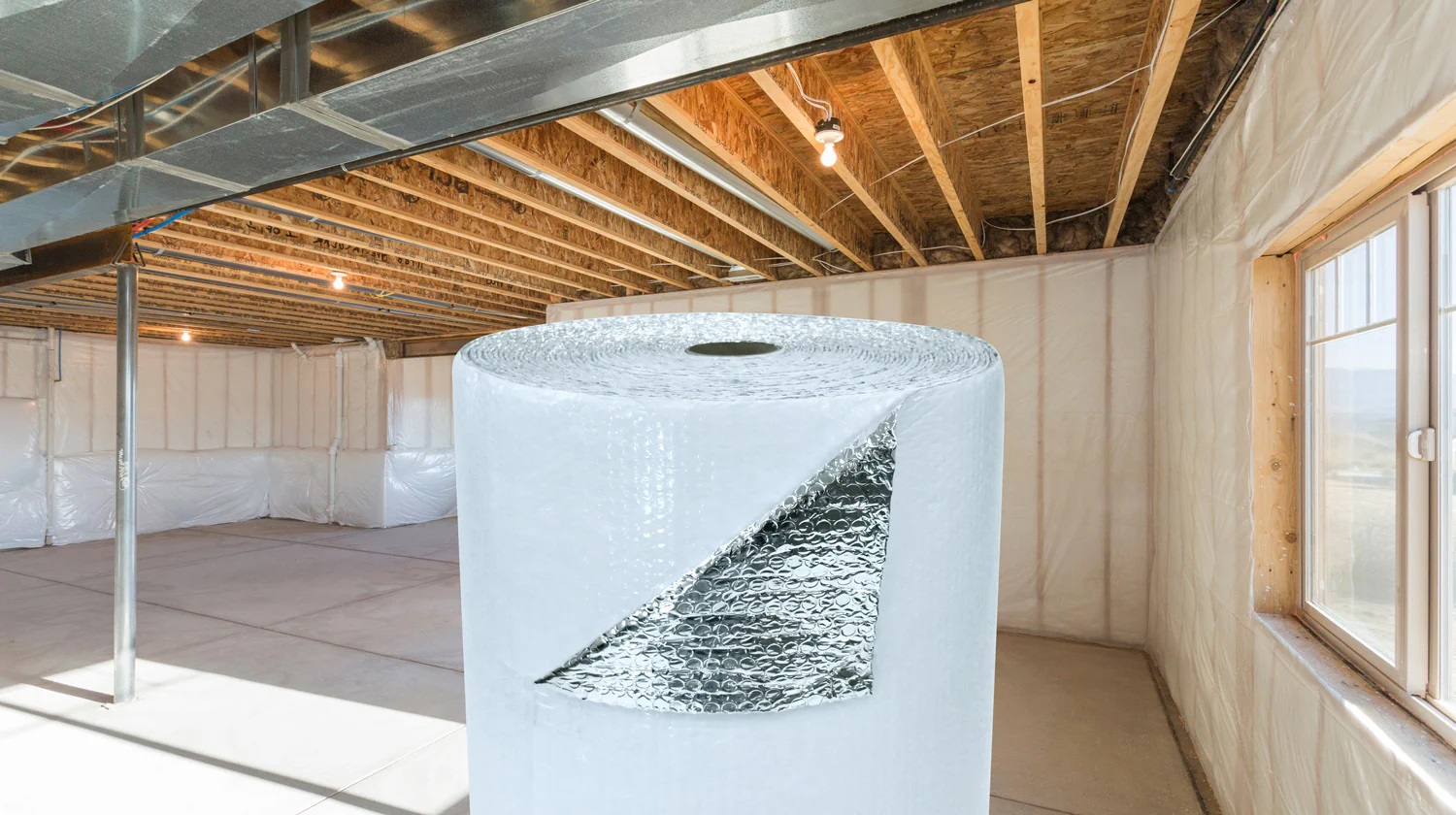

Does fiberglass insulation need a vapor barrier?

Whether fiberglass insulation needs a vapor barrier depends on the specific installation location and environmental conditions. The main function of a vapor barrier is to prevent water vapor from penetrating into the insulation material to prevent moisture accumulation that may cause insulation degradation, mold growth, or structural damage.

Situations where a vapor barrier is needed

• High humidity areas: When using fiberglass insulation in high humidity environments such as bathrooms, kitchens, and basements, it is usually recommended to install a vapor barrier to prevent moisture from entering the insulation.

• Cold climates: In cold areas, especially in winter, warm, moist air inside the room may migrate through the walls to the cooler outside, causing condensation. In this case, a vapor barrier can help prevent condensation from forming.

• Walls and roofs: For insulation systems in walls and roofs, installing a vapor barrier can effectively reduce moisture vapor migration, especially when the temperature is higher on the inside and lower on the outside.




Situations where a vapor barrier is not necessarily needed

• Well-ventilated spaces: If the space has good ventilation, such as an attic, an additional vapor barrier may not be needed because natural ventilation can help control moisture levels.

• Smart Membranes: Certain new moisture barriers can automatically adjust their air permeability based on ambient humidity, and can replace traditional impermeable vapor barriers under certain conditions.

• Insulation with built-in moisture barrier properties: Some special types of insulation already have certain moisture barrier properties and may not require an additional vapor barrier.

Installation considerations

• Correct location: The vapor barrier should be installed on the warm side, the side closer to the interior, to prevent warm, moist air from entering the cooler insulation.

• Continuity and sealing: Make sure the vapor barrier is continuous and sealed throughout the insulation system, without breaks or holes, to maximize its effectiveness.

In short, whether to install a vapor barrier for fiberglass insulation should be determined based on the specific application environment. In many cases, especially in humid or changing climates, installing a vapor barrier is a wise choice to protect the long-term performance of the insulation system and extend its service life.

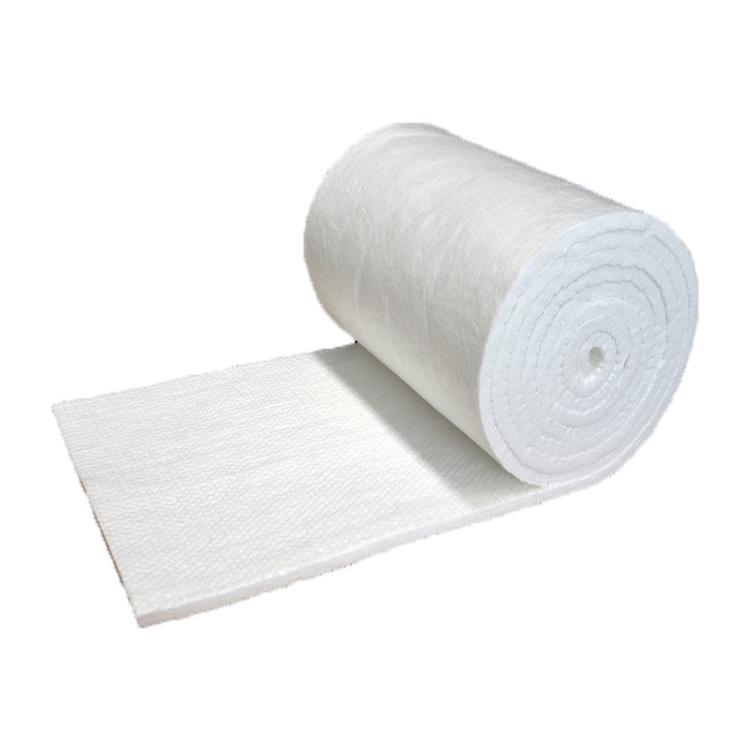

Which fiberglass material can be used at the highest temperature?

Fiberglass needle mat is a non-woven material formed by interweaving glass fiber filaments through a mechanical needle punching process. This material is widely used in many fields due to its excellent physical and chemical properties, especially in environments where high temperature resistance is required.

Fiberglass Needle Mat  temperature resistance

Fiberglass needle mat can withstand higher temperatures, depending on its composition and manufacturing process. Standard fiberglass needled mats can typically withstand temperatures up to approximately 500°C (932°F) under continuous operating conditions, with peak temperatures that can be higher over short periods of time. However, some needle mat products that are specially treated or made from high-performance fiberglass can have significantly higher temperature resistance, in some cases reaching 1000°C (1832°F) or higher.

High temperature application examples

• Exhaust systems: In exhaust systems of automobiles and industrial equipment, needle mat insulation serves as a thermal insulator, ensuring safe operation and reducing exterior surface temperatures.

• Heating pipe wrapping: For pipes that need to be exposed to high temperatures for a long time, fiberglass needle mat can be used as an effective insulation material to maintain the internal temperature while reducing heat energy loss.

• Industrial furnace lining: In industrial furnaces in metallurgy, chemical and other industries, fiberglass needle mat is used as a thermal insulation layer to effectively reduce heat loss and protect equipment from extreme temperatures.

• Fire Barriers: In construction and transportation, fiberglass needle mat can be used as a fire barrier to provide extra safety and prevent the spread of fire.

Due to its excellent high temperature resistance, fiberglass needle mat stands out in many high temperature application scenarios and becomes a rare and ideal material choice. If you are looking for a fiberglass material that can perform reliably in extreme temperature conditions, fiberglass needle mat is certainly an option worth considering.

Can fiberglass needle mat touch heating pipes?

Fiberglass Needle Mat can be used in direct contact with heating pipes, but there are several key factors that need to be noted to ensure its safe and effective use:

1. Temperature tolerance

Fiberglass needle felt has good high temperature resistance and can withstand higher temperatures. However, the specific application needs to confirm the maximum temperature resistance limit of the needle mat used and ensure that it matches the operating temperature of the heating pipe.

2. Thermal conductivity characteristics

Fiberglass needle mat is an excellent thermal insulation material that can effectively reduce heat transfer. When wrapped directly around a heated pipe, it can significantly reduce the temperature of the outside environment while maintaining heat inside the pipe. Therefore, it is one of the ideal choices for thermal insulation.

3. Installation method

To ensure optimal insulation and safety, the following points should be considered during installation:

Tight fit: Make sure the needle mat wraps tightly around the pipe to avoid gaps or looseness.

Proper Fastening: Use suitable straps, tape, or other fastening devices to ensure that the needle mat does not shift or become dislodged.

Moisture-proof treatment: If the ambient humidity is high, it is recommended to add a moisture-proof layer on the outside of the needle mat to prevent moisture from entering and causing a decrease in thermal insulation performance.

4. Chemical Compatibility and Safety

In most cases, insulation needle felt has good resistance to common chemicals. However, if special media (such as corrosive chemicals) are transported in the heating pipeline, it is necessary to confirm whether the needle mat is suitable for the specific application environment and take necessary protective measures.

5. Health and Safety Precautions

While fiberglass itself is a stable material, the cutting or handling process may release tiny fibers that may cause discomfort if inhaled or come into contact with the skin. Therefore, appropriate personal protective equipment such as gloves, masks, and goggles should be worn during installation and maintenance.

What is the benefit of needle mat?

Fiberglass needle mat has demonstrated significant advantages in multiple application fields due to its unique physical and chemical properties.

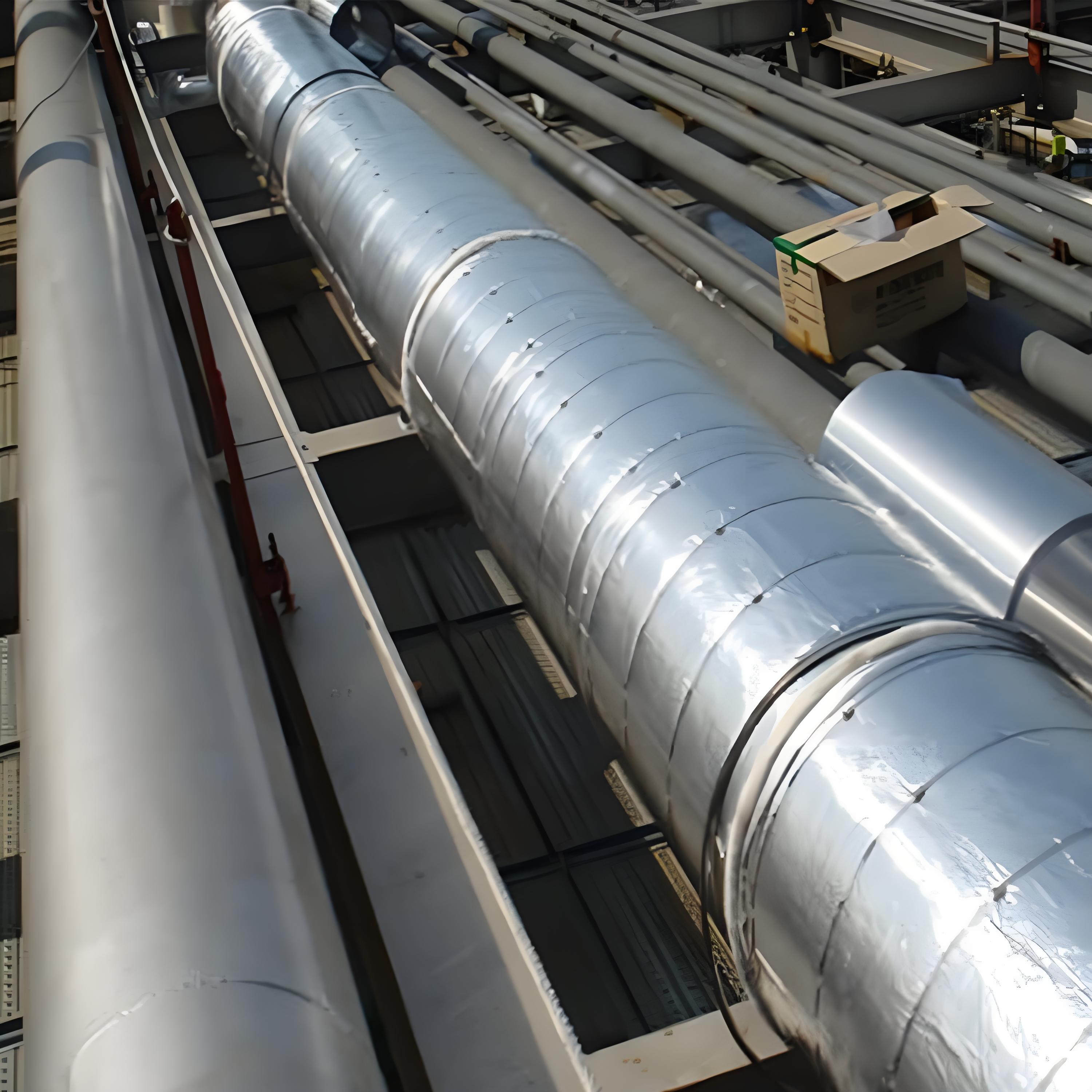

1. Pipe insulation

Excellent thermal insulation properties

Advantages: Glass fiber needle mat has extremely low thermal conductivity, which can effectively reduce heat loss and keep the internal temperature of the pipe stable.

Application: Used on pipes in industrial and civil buildings to significantly improve energy efficiency and reduce operating costs.

2. Car exhaust treatment

High temperature resistance and chemical stability

Advantages: It maintains structural integrity in extreme temperatures and is resistant to most chemicals, including harmful components in car exhaust.

Application: Used as a thermal insulation material in automobile exhaust systems to protect surrounding components from high temperatures, while preventing corrosion and extending service life.

3. Industrial insulation layer

Mechanical strength and flexibility

Advantages: It has good mechanical strength even under high temperature conditions and is not easy to break; its flexibility allows it to adapt to various surfaces with complex shapes.

Application: It is suitable for the external insulation layer of high-temperature equipment such as furnaces, reactors, etc. in metallurgy, chemical industry, etc. It can not only provide effective thermal protection but also simplify the installation process.

4. Fire barriers

Flame retardant and low smoke toxicity

Advantages: Fiberglassitself does not burn and does not produce toxic gases when heated, complying with strict fire safety standards.

Application: As a fireproof isolation material in building walls, floors and ceilings, it buys valuable time for personnel evacuation and reduces the risk of fire spreadHow many years does fiberglass needle mat?

The life of fiberglass needle mat depends on many factors, including but not limited to operating temperature, environmental conditions, maintenance, and specific application scenarios. Generally speaking, under normal conditions, high-quality fiberglass needle mat can last for many years:

Standard products: In regular industrial environments, the expected service life can reach 10-15 years.

High-performance products: Certain products with special treatments or made of advanced materials, such as high-silica fiberglass needle mat, can maintain a long service life even in extreme temperatures, which may exceed 20 years or even longer.

E glass fiber needle mat can provide durable and reliable solutions for a variety of application scenarios. If you choose a high-quality product that suits your needs and follow the correct installation and maintenance guidelines, you can get the best return on investment and long-term benefits.

In Conclusion

In summary, we can clearly see that each material has its unique advantages and best application scenarios. Fiberglass wool is suitable for those occasions that focus on cost control, installation convenience and certain acoustic requirements; in contrast, rigid insulation board is more suitable for environments that require stronger mechanical properties, better dimensional stability and waterproofing. These two materials are not simply substitutes, but partners that complement each other according to the characteristics of specific projects.

As for fiber glass needle mat, its emergence provides a new perspective for solving high temperature problems. It can face extreme temperatures of up to 1000°C while maintaining good mechanical strength and chemical stability. Not only that, fiberglass needle mat also has excellent flexibility and can adapt to surfaces with complex shapes, simplifying the installation process and improving work efficiency. More importantly, with the advancement of science and technology, the development of new smart membrane technology has also made breakthroughs in moisture management for this type of material, further expanding their scope of application.
