A Strategic Guide to Glass Fiber Chopped Strands Specifications for Auto Parts

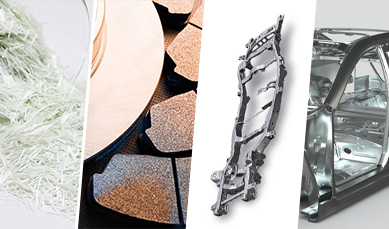

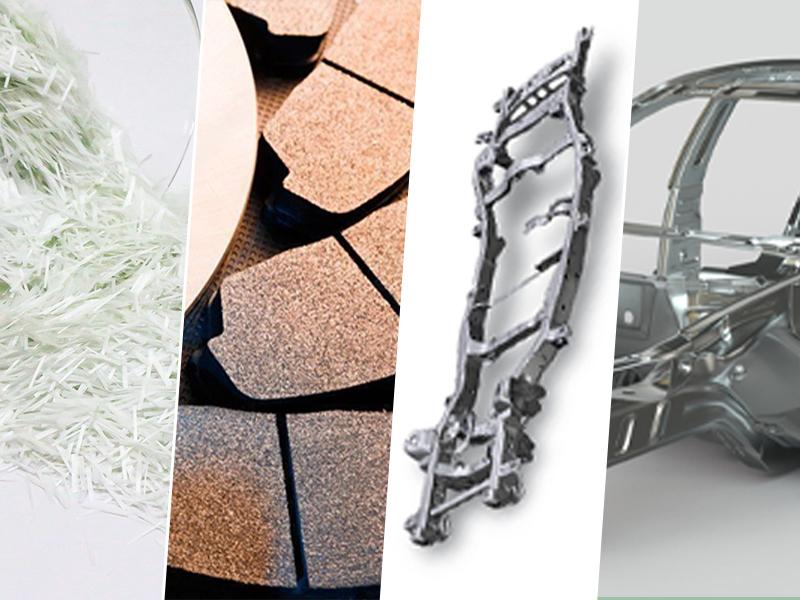

With the accelerating transformation of automotive lightweighting, glass fiber chopped strands have become an indispensable core reinforcing material in the production of auto parts, widely used in brake pads, battery pack guards, interior skeletons, chassis components and other parts. As a purchaser, manufacturer or R&D personnel of auto parts, the core confusion when choosing glass fiber chopped strands is often: "Which specification is most suitable for my part production?" Unsuitable specifications will not only lead to increased production costs, substandard product performance, but also may affect the delivery cycle and miss market opportunities. This guide starts from the actual needs of customers, disassembles the core specification parameters, selection logic, common misunderstandings and optimization strategies of glass fiber chopped strands for auto parts, helping you accurately match specifications, control costs, improve product competitiveness, and achieve a win-win situation in procurement and production.

1. Core Cognition: Why is Specification Selection Crucial for Auto Parts?

For the auto parts industry, the specifications of glass fiber chopped strands directly determine the mechanical properties, processing efficiency and service life of the parts, and are deeply bound to procurement costs and market competitiveness. From the customer's perspective, our core demand for purchasing chopped strands is "adapting to production, meeting performance and controlling costs", and specification selection is the key to realizing this demand:

First of all, adapting to the production process is the foundation. Different production processes of auto parts (such as injection molding, compression molding, spray molding, etc.) have great differences in the requirements for the specifications of chopped strands. For example, the injection molding process requires the chopped strands to have good dispersibility and fluidity. If the length is too long, it is easy to cause material blockage; if it is too short, it cannot achieve the reinforcing effect. The compression molding process has higher requirements on the bunching and temperature resistance of the chopped strands. Secondly, meeting the performance of parts is the core. Different use scenarios of auto parts have different requirements on the strength, corrosion resistance and high temperature resistance of chopped strands - brake system parts require chopped strands to have excellent heat resistance and wear resistance, while new energy vehicle battery pack parts need to balance strength and insulation. Finally, cost control is the key. Excessively high specifications will cause performance redundancy and increase procurement costs; excessively low specifications will lead to a decline in product qualification rate and indirectly increase production costs. Therefore, scientific selection of specifications is the core strategy for auto parts customers to reduce costs, increase efficiency and improve product quality.

2. Core Specification Breakdown: Key Parameters for Auto Parts Customers

There are many specification parameters of glass fiber chopped strands, but for auto parts customers, there is no need to pay excessive attention to all details. Mastering the following 5 core parameters can quickly lock in the suitable specifications. Combined with the application scenarios and industry standards of auto parts, the following parameter interpretations are all based on the actual use needs of customers, avoiding obscure professional terms, allowing you to easily judge whether the specifications are suitable.

(1) Chopped Length: The Core Determinant of Processing Efficiency and Reinforcement Effect

Chopped length is the most basic and critical specification parameter of glass fiber chopped strands, referring to the length of a single glass fiber after being cut, in millimeters (mm). For auto parts customers, the core principle of choosing the chopped length is "matching the production process + meeting the strength requirements of the parts", without blindly pursuing too long or too short.

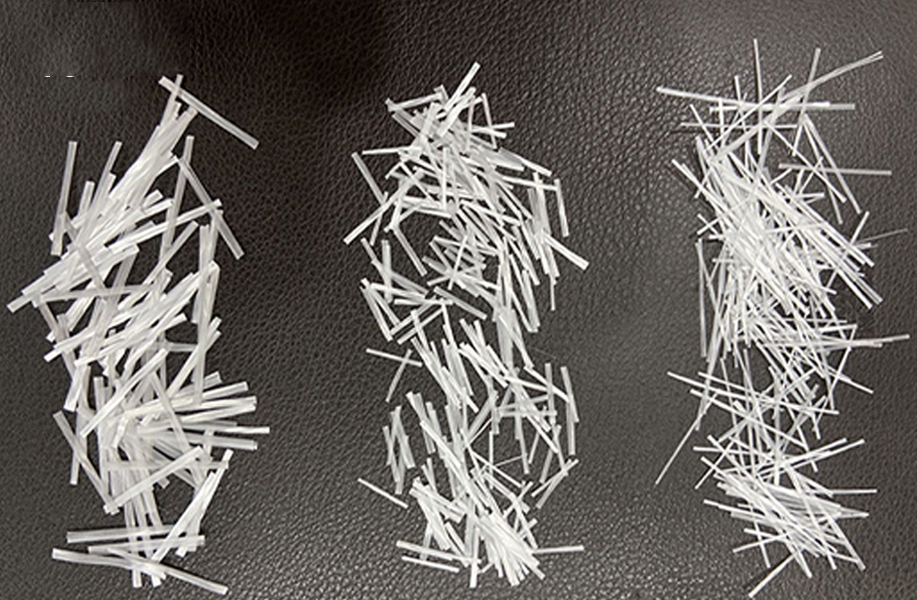

At present, the commonly used chopped lengths in the auto parts field are mainly divided into 3 categories: 3-6mm, 8-12mm, and 15-20mm. The adaptation scenarios of different lengths are very different:

1. 3mm: Suitable for injection molding process, mainly used for small and complex auto parts, such as interior parts (instrument panel skeleton, air conditioning air outlet), small plastic brackets, etc. Such parts have extremely high requirements on the dispersibility of chopped strands. The short length can ensure that they are evenly dispersed in the resin, avoid agglomeration and material blockage, and meet the basic strength requirements of the parts.

2. 6mm: Suitable for compression molding and extrusion molding processes, mainly used for medium-sized auto parts, such as brake pads, battery pack guards, door interior panels, etc. Such parts have certain requirements on strength and rigidity. The medium-length chopped strands can achieve a balance between dispersibility and reinforcing effect, which not only avoids the problem of insufficient reinforcement with short length, but also solves the problem of uneven dispersion with long length.

2. 3. 12mm: Suitable for hand lay-up and spray molding processes, mainly used for large and high-strength auto parts, such as chassis guards, body panels, FRP carriages, etc. Such parts require extremely high strength and impact resistance. The long-length chopped strands can form a more stable reinforcing network, improving the load-bearing capacity and service life of the parts.

It should be noted that the chopped length is not fixed and can be customized according to the customer's specific production process and part requirements. However, it is recommended that customers, when customizing, combine the processing capacity of their own equipment to avoid processing difficulties caused by too long length or affecting product performance due to too short length. According to industry experience, when choosing the chopped length, auto parts customers can refer to the principle of "process adaptation first, strength demand second", and preferentially choose the conventional length in the industry to reduce procurement and production risks.

(2) Fiber Diameter: The Key Affecting Part Precision and Hand Feel

The commonly used fiber diameters in the auto parts field are mainly 3 types: 9-11μm, 13-15μm, 17-20μm. The specific adaptation scenarios are as follows:

1.9-11μm: It is a fine filament, mainly used for auto interior parts with high appearance requirements, such as seat backboards, sun visors, interior decorative panels, etc. The chopped strands of fine filaments have good softness, and can form a smooth surface after mixing with resin, avoiding problems such as fiber exposure and rough surface, and improving the aesthetics and hand feel of the parts. At the same time, the fine filaments have high strength, which can meet the basic reinforcement needs of interior parts, and will not increase the weight of the parts, which is in line with the trend of automotive lightweight.

2. 13-15μm: It is a medium filament, which is the most widely used specification in the auto parts field. It is suitable for most medium-sized parts, such as brake pads, battery pack guards, chassis brackets, etc. This type of filament can not only ensure the strength and reinforcing effect of the chopped strands, but also has good dispersibility and processability, balancing performance and appearance, with the highest cost performance.

3. 17-20μm: It is a thick filament, mainly used for high-strength and high-wear auto parts, such as chassis guards, brake shoes, heavy-duty truck parts, etc. The chopped strands of thick filaments have high strength and good wear resistance, which can effectively improve the load-bearing capacity and service life of the parts, and are suitable for scenarios with harsh use environments and large forces. However, it should be noted that the thick filaments have poor softness and relatively weak dispersibility. If used for parts with high appearance requirements, problems such as rough surface and fiber exposure may occur, so it is not recommended for products with strict appearance requirements such as interior parts.

(3) Glass Type: The Foundation for Adapting to Different Part Performance Requirements

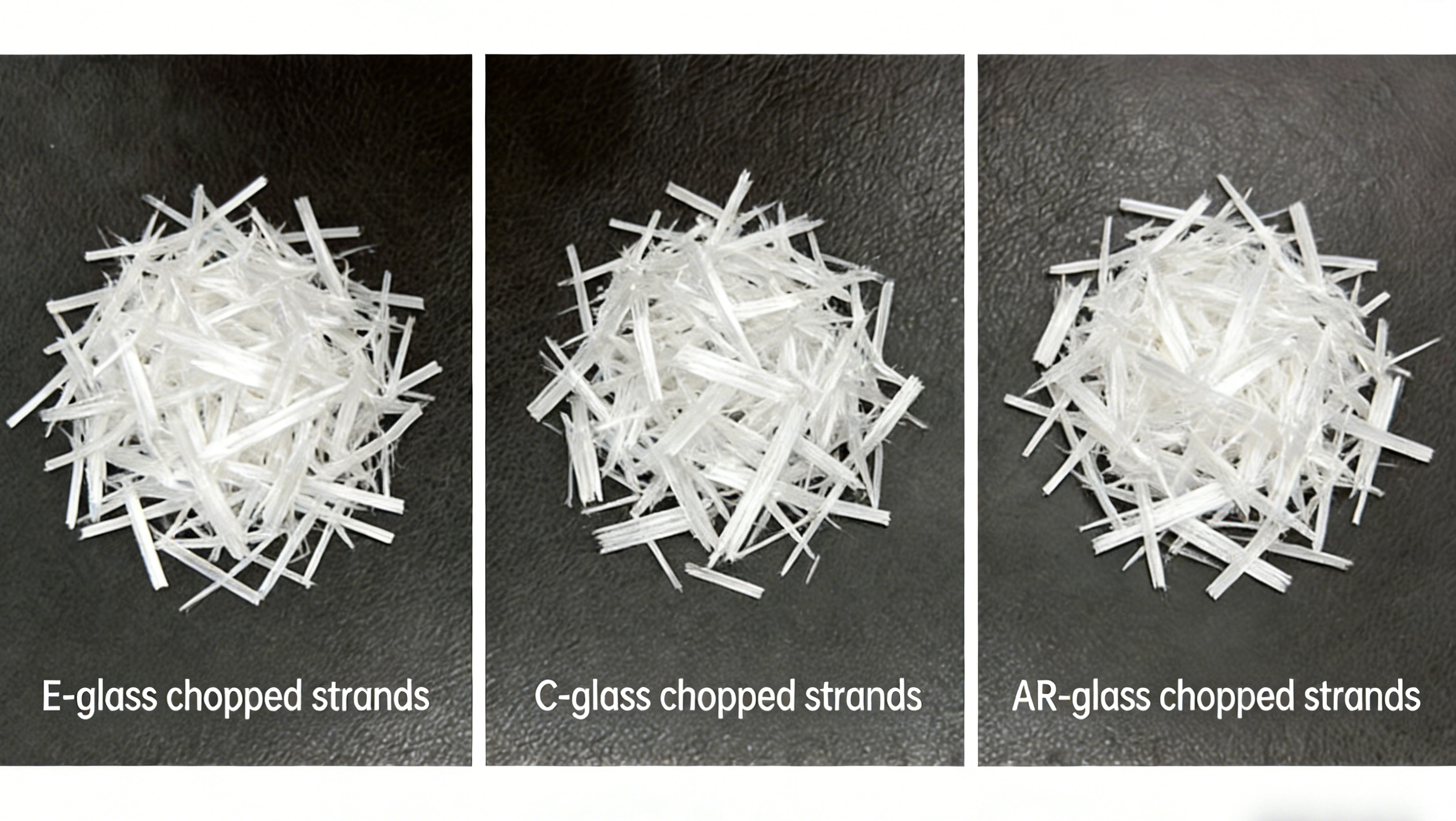

The glass type of glass fiber chopped strands is mainly divided into E-glass, C-glass and AR-glass. Different types of glass fibers have great differences in chemical properties and mechanical properties, and the applicable auto parts scenarios are also different. For auto parts customers, the core of choosing the glass type is "matching the use environment and performance requirements of the parts", avoiding part failure due to wrong glass type selection.

1. E-glass: The most widely used glass type in the auto parts field, accounting for more than 85%. The alkali metal oxide content of E-glass is less than 1%, which has excellent mechanical properties, electrical insulation, corrosion resistance and heat resistance, and is suitable for most auto parts, especially new energy vehicle parts. For example, battery pack guards, interior parts, brake system parts, etc., all prefer E-glass chopped strands. The tensile strength of E-glass chopped strands can reach more than 2400MPa, which can meet the high-strength requirements of auto parts. At the same time, it has good insulation, which is suitable for the protection of high-voltage components of new energy vehicles, and has good compatibility with resins such as PA, PP and PBT, which can improve the overall performance of the parts. For most auto parts customers, E-glass chopped strands are the most reliable and cost-effective choice.

2. C-glass: The alkali metal oxide content is between 11% and 16%. Its mechanical properties and corrosion resistance are slightly lower than E-glass, but the cost is lower. It is mainly used for low-end auto parts with low performance requirements, such as plastic brackets and decorative parts. Such parts have low requirements on strength and corrosion resistance, and choosing C-glass chopped strands can effectively control procurement costs. However, it should be noted that C-glass has poor water resistance and is not suitable for parts used in humid environments or long-term exposure to the outdoors, such as chassis guards and door trim strips, otherwise fiber aging and strength decline may occur.

3. AR-glass: The alkali metal oxide content is less than 2%, which has excellent alkali resistance. It is mainly used for auto parts in contact with alkaline materials such as concrete and mortar, such as chassis protection parts of heavy-duty trucks and parts of engineering vehicles. Such parts are in long-term contact with alkaline substances. If E-glass or C-glass chopped strands are selected, they are easily corroded, leading to strength decline and shortened service life. AR-glass chopped strands can effectively resist the erosion of alkaline substances and ensure the stability of the parts, but the cost is higher, and the mechanical properties are slightly lower than E-glass, so it is only suitable for specific scenarios, and most auto parts customers do not need to give priority to it.

(4) Surface Treatment: The Key to Improving Part Bonding Force and Durability

The commonly used surface treatment types in the auto parts field are mainly silane-based. The specific adaptation scenarios are as follows:

Silane-based sizing agents: divided into amino silane, epoxy silane, methacryloxy silane, etc. Different types of silane sizing agents are suitable for different resin systems, which is the core basis for customer selection. For example, amino silane is suitable for epoxy resin and phenolic resin, mainly used for brake system parts (brake pads, brake shoes), which can improve the bonding force between chopped strands and resin, and enhance the wear resistance and heat resistance of the parts; epoxy silane is suitable for epoxy resin and unsaturated polyester resin, mainly used for battery pack guards, chassis parts, etc., which can improve the impact resistance and corrosion resistance of the parts; methacryloxy silane is suitable for thermoplastic resins such as polypropylene (PP) and nylon (PA), mainly used for interior parts, plastic brackets, etc., which can improve the dispersibility of chopped strands and enhance the rigidity and toughness of the parts.

3. Customer Perspective: Practical Selection Strategies and Common Misunderstandings

Combined with years of industry experience, we have summarized the practical strategies for auto parts customers in the selection of glass fiber chopped strands specifications, and sorted out common misunderstandings, helping customers avoid pitfalls, select specifications accurately, and achieve cost reduction and efficiency improvement.

(1) Core Selection Strategy: 2 Steps to Lock in Suitable Specifications

For auto parts customers, there is no need to get stuck in complex professional parameters. By following the following 3 steps, you can quickly lock in the suitable chopped strands specifications, balancing performance, efficiency and cost:

1. Clarify core needs: First determine your own production process (injection molding, compression molding, spray molding, etc.) and part use (interior parts, brake parts, battery pack parts, etc.), which is the basis for selection. For example, if producing injection-molded interior parts, the core demand is good dispersibility and smooth surface. You can preferentially choose E-glass chopped strands with 3-6mm chopped length, 9-11μm fiber diameter and silane-based surface treatment; if producing compression-molded brake parts, the core demand is high strength and high temperature resistance. You can choose E-glass chopped strands with 8-12mm chopped length, 13-15μm fiber diameter and amino silane surface treatment.

2. Balance performance and cost: Avoid the misunderstanding of "the higher the specification, the better". Choose the appropriate specification according to the performance requirements of the parts to achieve a balance between performance and cost. For example, ordinary interior parts do not need to choose thick filament and long-length chopped strands. Choosing conventional specifications can meet the needs and reduce procurement costs; for core parts such as brake systems and battery packs, priority should be given to ensuring performance, and high-strength and high-temperature resistant specifications should be selected to avoid part failure due to insufficient specifications and increase later losses.

(2) Common Misunderstandings: 2 Pitfalls to Avoid

In the actual selection process, many auto parts customers will fall into some misunderstandings, leading to the purchased chopped strands being unable to adapt to production, increasing costs and risks. The following 2 common misunderstandings must be avoided:

1. Misunderstanding 1: Blindly pursuing long length and thick filament, thinking that the higher the specification, the better. Many customers believe that the longer the chopped length and the thicker the filament, the better the reinforcing effect. But in fact, too long length will lead to poor dispersibility and difficult processing, and too thick filament will affect the surface precision of the parts and increase the procurement cost. For example, when producing auto interior parts, choosing chopped strands with 15mm chopped length and 17μm fiber diameter will not only cause injection molding blockage, but also make the surface of the interior parts rough, which does not meet the appearance requirements.

2. Misunderstanding 2: Ignoring the compatibility between surface treatment and resin. Some customers only pay attention to basic parameters such as chopped length and fiber diameter, and ignore the surface treatment type, leading to incompatibility between chopped strands and resin, resulting in delamination, falling off and other problems. For example, using PP resin to produce interior parts, but choosing chopped strands with amino silane surface treatment, will lead to loose combination between chopped strands and resin, and the parts are easy to be damaged.

4. Conclusion: Improve Auto Parts Competitiveness with Specification Selection as the Core

For auto parts customers, the specification selection of glass fiber chopped strands is not a simple parameter comparison, but a strategic decision related to production efficiency, product quality and cost control. Under the general trend of automotive lightweighting and new energy, the application of glass fiber chopped strands will become more and more extensive, and the importance of specification selection will become increasingly prominent.

Starting from the customer's perspective, this article disassembles 5 core specification parameters: chopped length, fiber diameter, glass type, surface treatment and moisture content, gives the selection strategy of "clarify needs → balance costs → refer to cases", and sorts out common misunderstandings, hoping to help auto parts customers accurately lock in suitable specifications and avoid pitfalls in procurement and production.

Finally, it is recommended that customers, when selecting, give priority to formal and professional chopped strands suppliers, which can not only obtain high-quality products, but also obtain customized specification suggestions and technical support to help solve practical problems in production. At the same time, pay attention to industry standards and technological upgrades regularly, optimize specification selection in a timely manner, continuously improve the performance and competitiveness of auto parts, and gain an advantage in the fierce market competition.
