Purchase Guide for Glass Fiber Mesh for Wall Reinforcement

Wall cracking, hollowing, and detachment are the most common quality defects in construction and home decoration. They not only affect aesthetics but also hide potential safety hazards. As a core material for wall reinforcement, glass fiber mesh can significantly improve the tensile strength and crack resistance of plastering and putty layers, serving as a key defense against wall problems. With 24 years of deep cultivation in the glass fiber field, YUNIU always takes customers’ actual engineering and decoration needs as the guide. Combining industry standards and on-site construction experience, we have created this ultimate purchase guide for glass fiber mesh for wall reinforcement to help you select accurately and build an "invisible armor" for walls.

I. Gram Weight: The Core Yardstick for Wall Reinforcement Strength and Durability

Gram weight (weight per square meter) is the most critical performance indicator of wall reinforcement mesh, directly related to the tensile strength, flexibility, and deformation resistance of the mesh. YUNIU’s conventional gram weight covers the full range of 40–165gsm, which can precisely match the reinforcement needs of different wall scenarios.

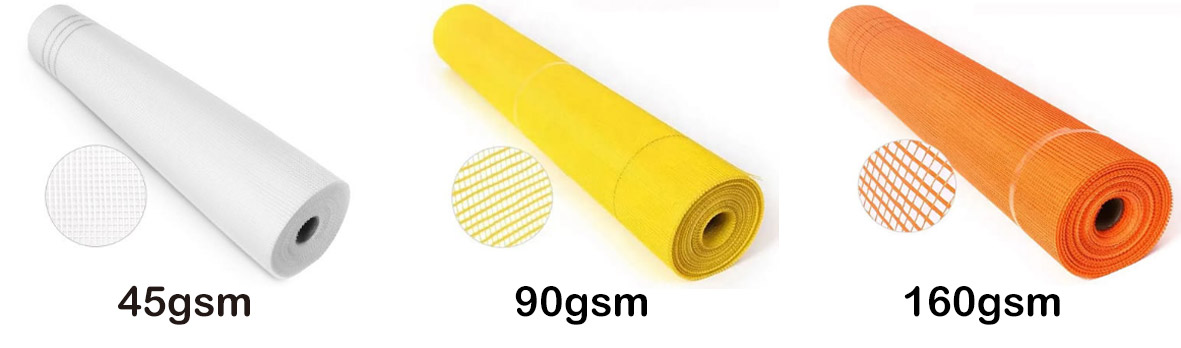

1. Scenario Adaptation Logic of Different Gram Weights

• 45gsm–60gsm (Lightweight Type): Light texture and excellent flexibility, suitable for low-strength scenarios such as indoor putty leveling and gypsum board joint treatment. This mesh is ideal for spaces with high wall flatness requirements and no obvious stress on the base layer. However, in working conditions such as old wall renovation and partial exterior wall reinforcement, its deformation resistance is insufficient to resist cracking risks caused by wall settlement and temperature stress.

• 75gsm–90gsm (Transition Type): Balances flexibility and basic strength, a common choice for indoor wall plastering and interior wall reinforcement of ordinary residences. It meets the basic crack resistance needs of conventional walls, adapts to common plastering materials such as cement mortar and gypsum mortar, and is cost-effective, making it a high-cost-performance solution for small and medium-sized home decoration and industrial decoration projects.

• 110gsm–160gsm (Mainstream Reinforcement Type): The core supply range of YUNIU for wall reinforcement. Among them, 110gsm and 145gsm are suitable for exterior wall plastering, load-bearing wall reinforcement, and joint treatment of new and old walls; 160gsm is the top conventional specification for wall reinforcement, applicable to harsh scenarios such as exterior walls of high-rise buildings, overall renovation of old walls, and wall reinforcement in wet areas such as bathrooms and kitchens. Its warp and weft tensile strength is sufficient to disperse wall stress and avoid cracking, hollowing, and detachment of the plastering layer.



2. Key Considerations for Gram Weight Selection

The gram weight selection for wall reinforcement projects should prioritize matching the three core factors: wall location + base condition + service environment. Ordinary indoor walls can choose 75gsm–90gsm to control costs while meeting basic crack resistance needs; stress concentration parts such as exterior walls, joints of new and old walls, and load-bearing walls must use 110gsm or above to ensure long-term stability; for walls in wet and large temperature difference environments (such as kitchens, bathrooms, and exterior walls), it is recommended to directly select 160gsm with alkali-resistant coated mesh to improve overall corrosion resistance and aging resistance.

II. Mesh Size: The Key to Balancing Mortar Penetration and Construction Efficiency

Mesh size determines the penetration effect of mortar/putty, the fit between the mesh and the wall, and directly affects construction efficiency and reinforcement quality. YUNIU’s wall reinforcement glass fiber mesh offers multiple specifications from 3mm×3mm to 10mm×10mm, adapting to different construction processes and wall base conditions.

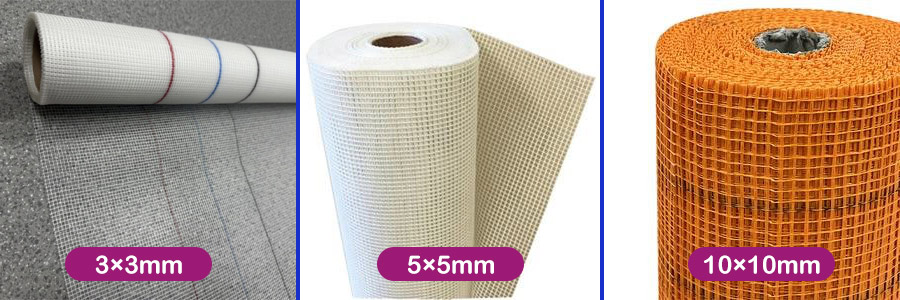

1. Application Scenarios of Different Mesh Sizes

• 3mm×3mm, 4mm×4mm (Small Mesh): High grid density and multiple reinforcement points, suitable for reinforcement construction of thin-layer plastering (thickness ≤5mm), internal and external corners, door and window openings, and other stress concentration parts. Small mesh allows mortar/putty to penetrate and wrap the mesh more evenly, avoiding pinholes and bubbles in the coating, while enhancing local crack resistance and reducing wall damage caused by stress concentration.

• 5mm×5mm (Universal Size): The core size promoted by YUNIU. The mesh size highly matches the particle size of mainstream wall materials such as cement mortar and gypsum putty. It not only ensures full material penetration to form a firm whole between the mesh and the wall matrix, but also avoids material waste and improves laying efficiency, suitable for most indoor and outdoor wall plastering projects.

• 10mm×10mm (Large Mesh): Suitable for thick-layer plastering (thickness ≥8mm), rough wall base, or large-area industrial construction scenarios. Large mesh facilitates complete mortar wrapping of the mesh, enhances the overall strength of the coating, reduces construction resistance, and improves the construction speed of large-area walls. It is not suitable for fine parts such as internal and external corners or scenarios requiring extremely high coating density.



2. Combination Strategy of Mesh Size and Gram Weight

High-quality wall reinforcement mesh selection requires precise matching of mesh size and gram weight. For example:

• Large-area exterior wall plastering: 160gsm + 5mm×5mm, balancing strength and construction efficiency;

• Stress concentration parts such as internal/external corners and door/window openings: 110gsm + 4mm×4mm, strengthening local crack resistance;

• Ordinary indoor walls: 90gsm + 10mm×10mm, balancing cost and construction convenience.

III. Color and Customization: Personalized Solutions for Engineering Detail Needs

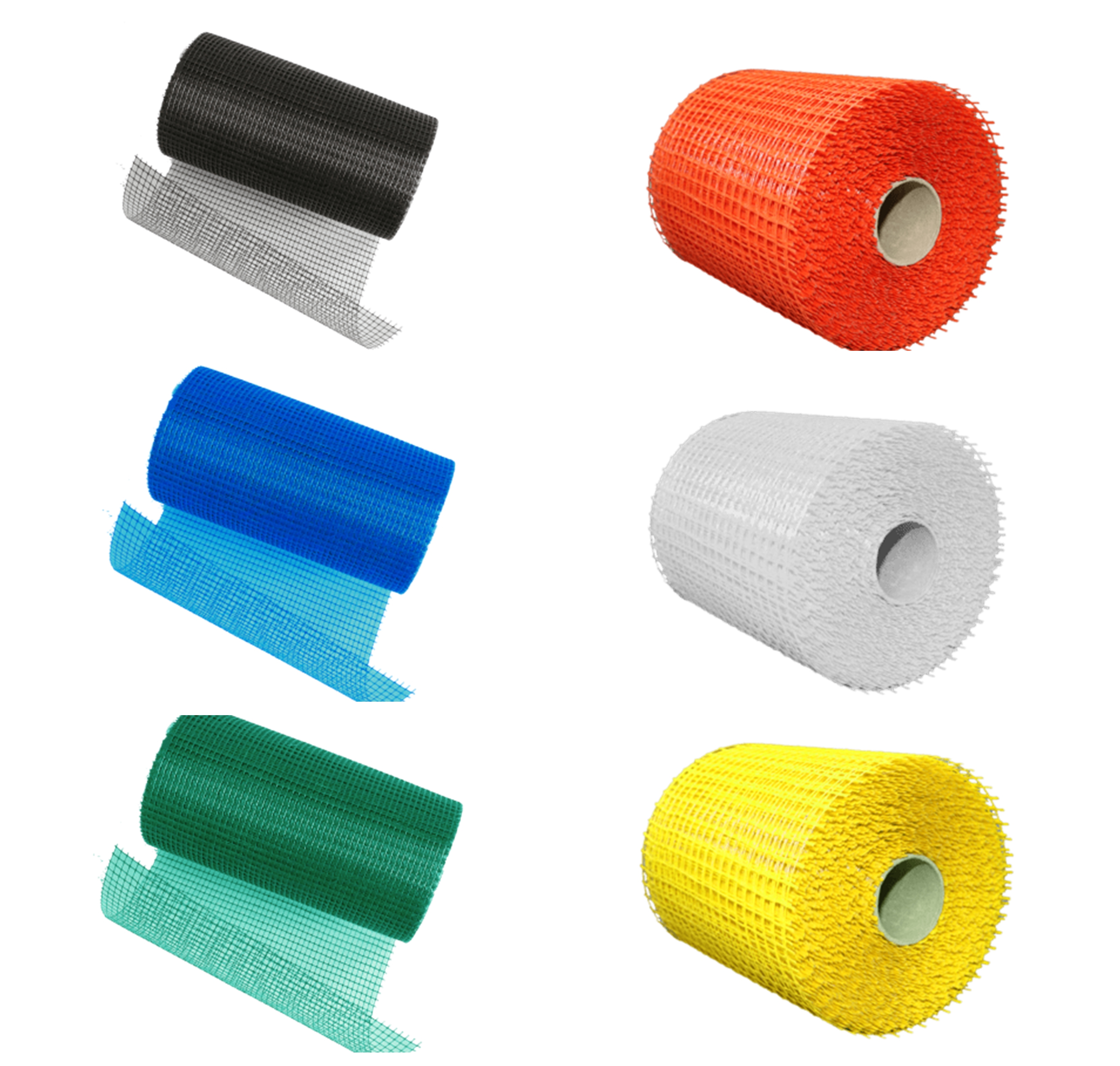

Color is an important identifier of wall reinforcement mesh and also facilitates project management and construction quality control. YUNIU’s conventional color is white, and customized colors such as blue, orange, green, and yellow are available. Customers can distinguish walls of different project sections and reinforcement levels by color, or adapt to the identification needs of specific construction scenarios.

"Customization as per customer requirements" is YUNIU’s core service advantage. For special wall reinforcement scenarios, YUNIU can flexibly adjust core parameters such as gram weight, mesh size, width, and coating. For example:

• Large-area industrial projects: Custom large-width mesh to reduce construction joints;

• Wet area walls: Custom thickened alkali-resistant coated mesh to improve corrosion resistance;

• Old wall renovation: Custom ultra-thin high-flexibility mesh to fit irregular wall bases.



IV. YUNIU: Wall Reinforcement Glass Fiber Mesh Solutions

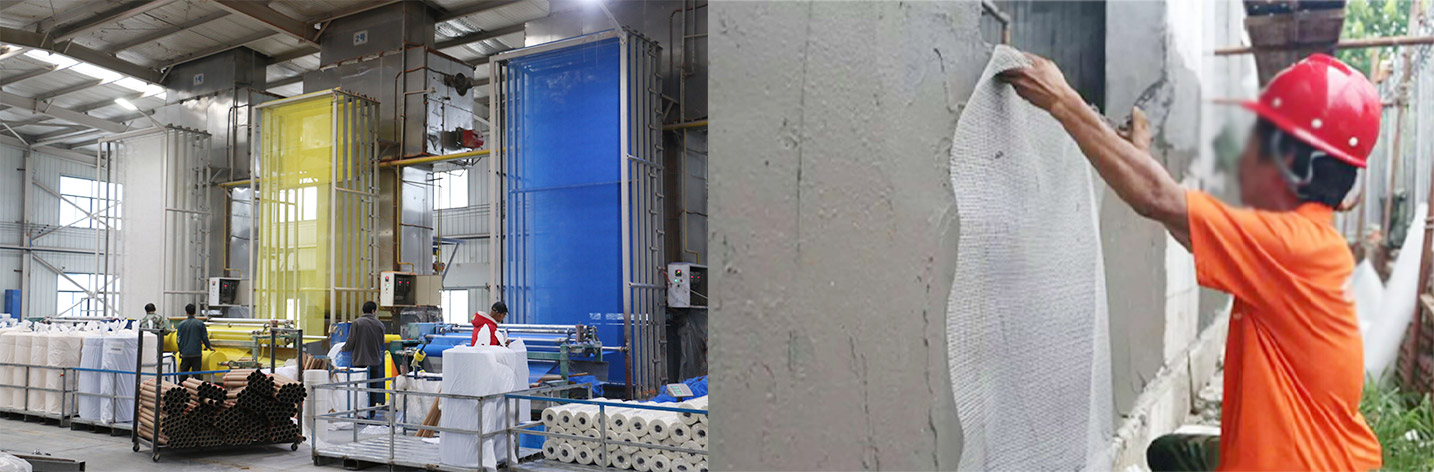

With years of deep cultivation in the glass fiber industry, YUNIU relies on mature production technology and strict quality control to build a wall reinforcement mesh system covering "conventional specifications + customized needs". We always stand in customers’ shoes and take "engineering adaptability, cost controllability, and long-term durability" as the core principles of specification design, providing full-process support for customers:

1. Standard Specification Pool: Selected conventional combinations of 45gsm–160gsm gram weight and 3mm×3mm–10mm×10mm mesh to meet the needs of most wall reinforcement projects, allowing customers to select directly and reduce communication costs.

2. Customized Service Capability: One-to-one specification customization for special working conditions and construction processes, including gram weight adjustment, mesh optimization, coating upgrade, and width customization, fully matching project requirements.

3. Full-Process Technical Support: Provide specification selection consultation, construction process guidance, material adaptation advice, and other full-process services to avoid construction rework or wall cracking caused by wrong specification selection and ensure project quality.

Wall reinforcement is a key link in construction and decoration. There is no "universal formula" for mesh specification selection. Only by accurately matching wall location, base condition, and construction process can the optimal balance between reinforcement performance and cost be achieved. With a professional specification system, strict quality standards, and flexible customization services, YUNIU has become a reliable partner for global customers in wall reinforcement projects. Whether you are engaged in home wall renovation, industrial interior wall plastering, or exterior wall reinforcement projects, we can provide adapted glass fiber mesh solutions to protect the long-term stability of walls.
