As a manufacturer of FRP products, you know well that chopped strand mat (CSM) is the core determinant of product quality. Acting as the muscle and skeleton of FRP, it directly affects the finished product’s strength, appearance, corrosion resistance, and production yield. However, faced with CSM products of complicated parameters and uneven quality in the market, many procurement and technical directors often get stuck: How to choose the right weight without waste? How to match the width to the production line? Which is more suitable for the process—emulsion-bound or powder-bound mat? Choosing the wrong material can lead to uneven resin impregnation, frequent bubbles, and insufficient strength; in severe cases, it will raise the scrap rate, erode profits, and delay orders. Today, from the perspective of your actual production, combined with Yuniu’s full-range chopped strand mat products, we have created a practical, demand-oriented buying guide to help you select accurately, reduce costs, improve efficiency, and ensure stable output.
In FRP production, chopped strand mat is far from an ordinary consumable but a key material carrying three core values, which are the starting point of all procurement decisions.
Strength Assurance: Uniformly distributed non-directional glass fibers form an isotropic reinforcement structure to effectively transfer stress, greatly improving the tensile, impact, and deformation resistance of FRP products and preventing cracking and damage during use.

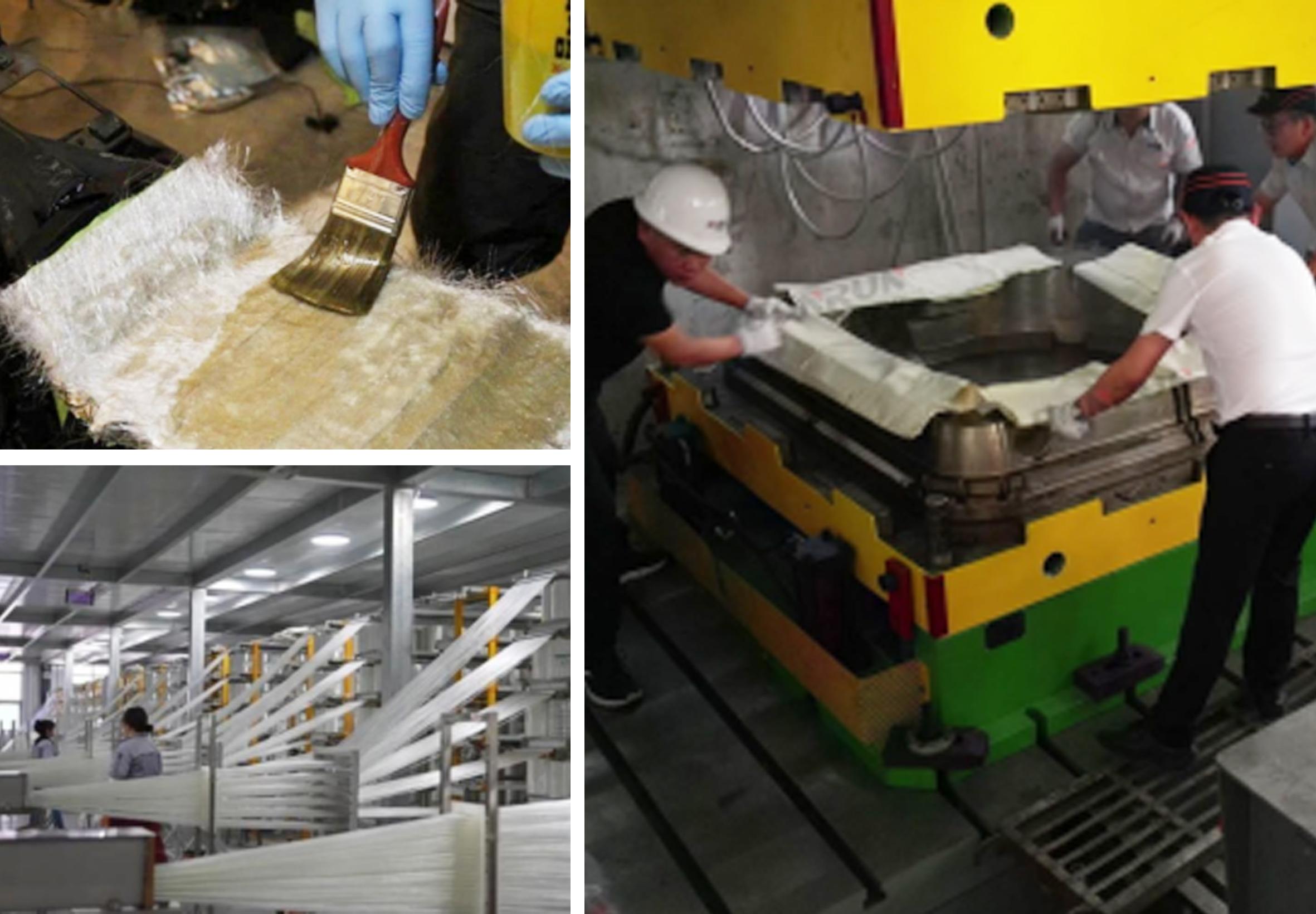

Process Adaptability: High-quality CSM fits hand lay-up, compression molding, pultrusion, and other processes, with fast impregnation, easy defoaming, and good mold conformity, reducing construction difficulty and improving production efficiency.
Cost Control: CSM with precise weight, suitable width, and stable quality reduces material waste, lowers resin consumption, and cuts the scrap rate, realizing cost-effective and economical use.
Since its establishment, Yuniu has focused on R&D of chopped strand mat suitable for various scenarios based on customers’ production pain points. We offer mainstream weights of 225gsm, 450gsm, 600gsm, standard widths of 1040mm, 1250mm, 1270mm, and two binder types (emulsion and powder), fully meeting the needs of the FRP industry. With stable quality and professional service, we have become a long-term choice for thousands of customers.

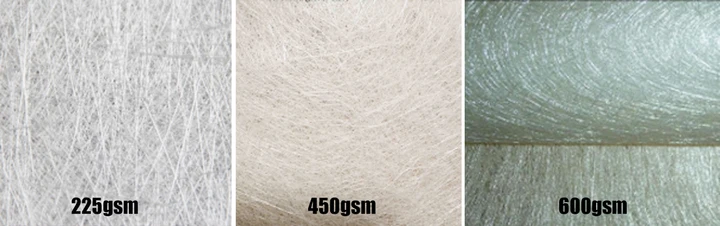

Weight (weight per unit area) is the most basic parameter of CSM, directly affecting thickness, strength, and resin dosage. Many customers mistakenly believe that higher weight means better quality, but the key is suitability for the scenario. Yuniu’s three mainstream weights precisely correspond to different production needs:
225gsm: Lightweight and delicate surface special mat. With extremely uniform fiber distribution and soft texture, it has excellent mold conformity and fit. It is suitable for the surface layer, resin-rich layer, or thin-walled parts reinforcement of FRP products. Widely used in inner liners of anti-corrosion water tanks, surface layers of FRP gratings, small handicrafts, and surface layers of sanitary ware. It forms a smooth and dense surface, reduces subsequent polishing, improves corrosion resistance and appearance, and is especially suitable for complex curved molds to avoid wrinkles and bubbles.
450gsm: Medium-to-high strength structural reinforcement mat. With higher fiber density and moderate thickness, it has significantly improved tensile strength and interlaminar shear force, suitable for products requiring structural strength. Widely used in medium-sized storage tanks, industrial pipelines, ship cabins, automotive guards, cooling tower shells, etc. It effectively improves the load-bearing and impact resistance of products, suitable for medium-thickness products, balancing strength and construction efficiency.
600gsm: High-load heavy-duty structural mat. Composed of high-density glass fibers with a strong support structure and excellent mechanical properties, it is designed for large, high-load, and high-corrosion-resistant products. Suitable for large storage tank cylinders, yacht hulls, wind turbine blade auxiliary materials, chemical anti-corrosion equipment, heavy-duty vehicle components, etc. It can withstand harsh working conditions such as high pressure, strong corrosion, and long-term vibration, ensuring long-term stability and durability of products.
The weight deviation of Yuniu’s full series products is strictly controlled within ±5%, far exceeding the national standard of ±8%. Many customers feedback that low-cost products have a weight deviation of over ±10%, resulting in uneven mat thickness and unbalanced local resin content—either excessive resin waste or insufficient impregnation causing dry spots, leading to a high scrap rate. Each roll of Yuniu CSM is tested by precise weighing, with uniform and stable weight, making the production process more controllable and cost accounting more accurate.
Width selection is often overlooked by customers but directly affects material utilization and production efficiency. Overly wide width requires frequent cutting, causing corner waste; overly narrow width requires multiple splicing, reducing efficiency and increasing strength risks. Yuniu offers three mainstream widths covering more than 90% of domestic production lines:
1040mm: Golden width for small and medium-sized production lines. Suitable for most hand lay-up tables, small compression molding machines, and pipe production lines, ideal for products within 1 meter such as FRP covers, small storage tanks, anti-corrosion pipes, and sanitary accessories. No large-scale cutting, less splicing, material utilization rate up to 95%+. Compared with wide-width materials, it saves a lot of corner waste cost annually, favored by small and medium-sized manufacturers.
1250mm: Universal standard width. Suitable for medium-sized automated production lines and wide-width plate production lines, for products 1–1.2 meters wide such as standard lighting panels, architectural decorative plates, and medium-sized ship plates. Balances adaptability and utilization, with moderate cutting and less splicing, taking into account efficiency and cost, the first choice for most large-scale manufacturers.
1270mm: Efficient width for large products. Designed for large production lines and wide-width products, suitable for large compression molding machines, vacuum infusion equipment, and continuous forming units, for products over 1.2 meters such as large lighting panels, hull shells, storage tank cylinders, and wind turbine components. Wide-width design reduces splicing times, improves production efficiency by more than 30%, avoids delamination and water leakage at splicing seams, and ensures the integrity and tightness of large products.
All Yuniu width products have neatly cut edges without fuzz or loose edges, and unwind smoothly without jamming. Some low-cost products have rough cutting, easy fiber shedding and jamming during use, which not only affects production but also pollutes resin and reduces product quality. Yuniu adopts high-precision cutting equipment with strict edge treatment, suitable for high-speed automated production lines, reducing downtime and improving production continuity.
Binder is the soul of CSM, determining mat strength, impregnation speed, appearance quality, and construction environment. Yuniu provides two types: Emulsion and Powder, precisely adapting to different processes:
Powder-bound mat: Cost-effective choice, suitable for hand lay-up and spray-up processes. Adopts powdered polyester binder, with fluffy mat and large gaps. The binder dissolves quickly after contacting resin, with extremely fast impregnation and easy defoaming, suitable for large-area rapid construction. Advantages: low cost, efficient impregnation, compatible with unsaturated polyester resin, suitable for mass production of ordinary products such as anti-corrosion water tanks, ordinary storage tanks, FRP gratings, molds, etc. Disadvantages: soft mat, average tear resistance, slight powder flying during construction, requiring workshop protection.
Emulsion-bound mat: High-end quality choice, suitable for compression molding and pultrusion processes. Adopts water-based emulsion binder, with compact mat, smooth surface, and firm fiber bonding, excellent tensile strength and tear resistance. Advantages: no powder flying, environmentally friendly construction, good compatibility with vinyl ester resin and epoxy resin, smooth surface without powder marks or bubbles after curing, suitable for high-end products. Disadvantages: slightly slower impregnation speed, requiring low-viscosity resin or extended impregnation time.
Both Yuniu binders use environmentally friendly high-quality raw materials, 100% compatible with mainstream resins, no rejection, delamination, or yellowing. Some small factories use inferior binders, which are prone to reaction with resin, residual powder marks after curing, and sudden strength drop. Each batch of Yuniu products undergoes resin compatibility testing to ensure adaptation to various processes, eliminating adaptation risks for customers.

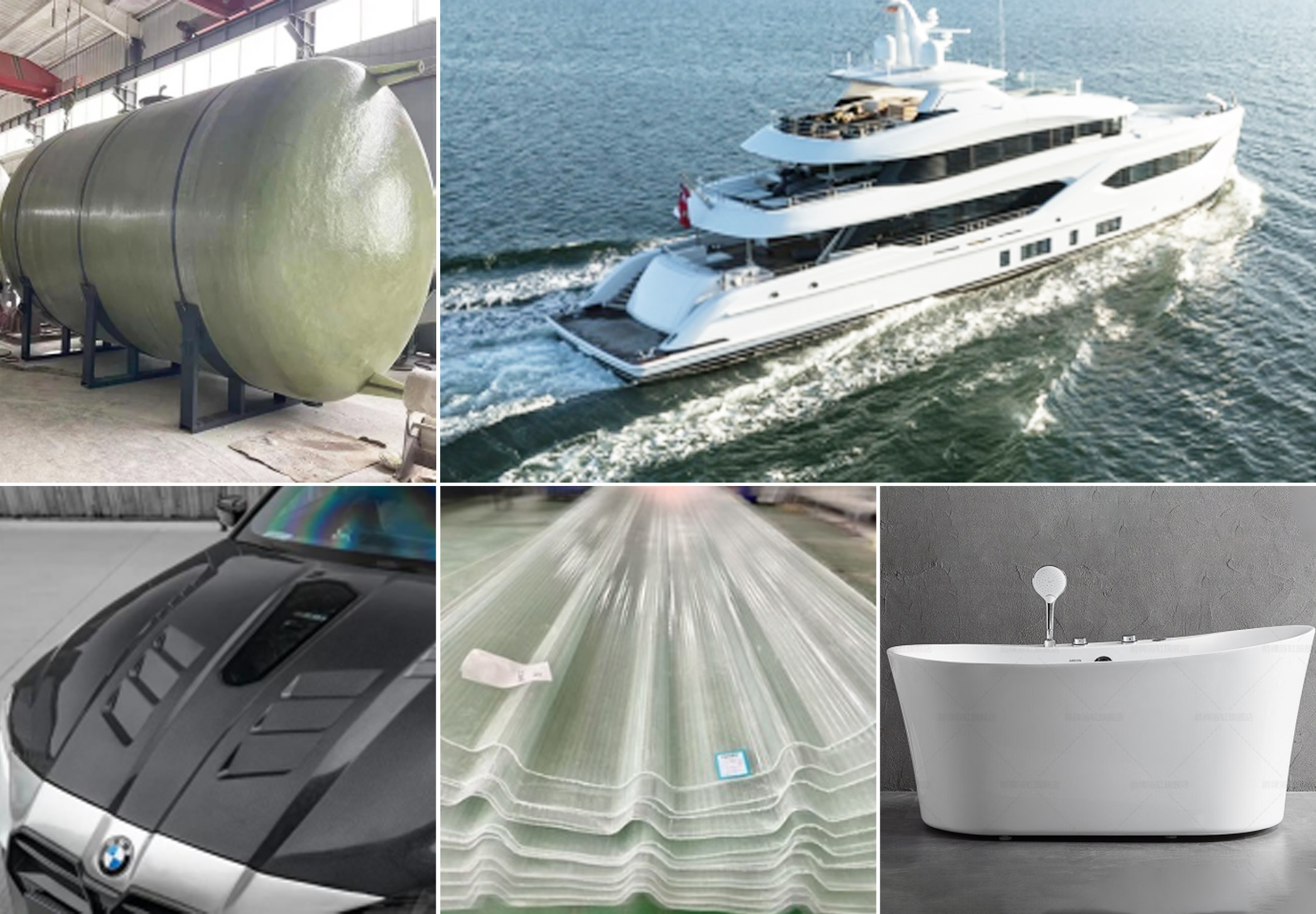

Core needs: strong corrosion resistance, no bubbles, good tightness
Yuniu recommendation: 225gsm emulsion mat for surface layer + 450gsm powder mat for structural layer. The emulsion surface layer forms a dense resin-rich layer to improve acid and alkali resistance; the powder structural layer impregnates fast, reduces bubbles in large-area construction, balancing corrosion resistance and cost.
Core needs: high strength, seawater corrosion resistance, smooth surface, good integrity
Yuniu recommendation: 450gsm emulsion mat, 1270mm wide width. Emulsion mat adapts to compression molding, stable structure and anti-delamination; wide width reduces splicing to avoid water leakage, high weight ensures hull impact resistance and structural strength.
Core needs: stable size, uniform strength, good appearance, suitable for compression molding
Yuniu recommendation: 225gsm emulsion mat. Precise weight with small deviation, uniform resin distribution during compression molding, reducing warpage; smooth surface of emulsion mat improves finished product appearance, adapting to lightweight and strength requirements of automotive parts.
Core needs: good light transmittance, no pinholes on surface, efficient continuous production
Yuniu recommendation: 225gsm emulsion mat, 1250/1270mm wide width. Emulsion mat impregnates uniformly, reduces bubbles and pinholes to ensure light transmittance; wide width adapts to continuous production lines, improving efficiency for mass production.
Core needs: good mold conformity, delicate surface, no defects, suitable for complex curved surfaces
Yuniu recommendation: 225gsm emulsion mat. High softness, fits complex molds without wrinkles; smooth surface after curing without extensive polishing, improving finished product delicacy and yield.
With years of deep cultivation in the chopped strand mat field, Yuniu always focuses on customer success, providing not only high-quality products but also a full-process service system—the key to long-term customer trust.
Strict Quality Control: Adopts alkali-free glass fiber raw yarn with uniform monofilament diameter and high strength; fully automated production with precise chopped length and uniform fiber distribution; each batch undergoes multiple tests (tensile strength, weight deviation, moisture content, impregnation, etc.) in compliance with national and industrial standards.
Complete Specifications: 3 weights, 3 widths, 2 binders, covering all scenarios; supports custom special specifications to meet personalized production needs.
Professional Service: One-to-one technical team service, free selection, process guidance, and problem-solving; sufficient stock and timely delivery to ensure uninterrupted production; fast after-sales response, solving customer problems within 24 hours.
Reputation Accumulation: Serves thousands of FRP enterprises covering anti-corrosion, shipbuilding, automotive, construction, sanitary ware and other industries, customer repurchase rate over 90%, winning market recognition with quality and service.
For FRP manufacturers, choosing chopped strand mat is never a simple procurement act but a key decision related to product quality, production efficiency, and corporate profits. Choosing the right material doubles production efficiency, ensures stable quality, and controls costs; choosing the wrong one leads to repeated pitfalls and hidden dangers.
Yuniu always stands from the customer’s perspective, deepens product development and optimizes services, helping every customer solve selection problems and improve product competitiveness with full-spec, high-quality, and highly adaptable chopped strand mat. Whether you are a new entrant or an experienced industry professional, this guide will help you clarify ideas and select accurately.
In the future, Yuniu will continue to be customer-oriented, constantly upgrade products, provide more professional and attentive services, be your most reliable material partner, and jointly create a new future of high-quality development for the FRP industry.
