Application of Glass Fiber in GFRP Materials

Introduction

With the rapid development of modern industrial technology, people have higher and higher requirements for the performance of materials, especially for structural parts that need to work in harsh environments for a long time. Although traditional metal materials have high strength and toughness, they are gradually replaced by new composite materials in many situations due to their shortcomings such as heavy weight and easy corrosion. Among them, Glass Fiber Reinforced Plastics (GFRP), as a typical high-performance composite material, has attracted much attention due to its excellent mechanical properties, lightweight advantages and good corrosion resistance.

As the main reinforcing phase of FRP, glass fiber can significantly improve the overall performance of the material. It effectively transmits load through good combination with the resin matrix, so that the composite material exhibits high strength and stiffness when subjected to external forces. In addition, glass fiber can also improve the dimensional stability and chemical corrosion resistance of FRP, making it suitable for a wider range of industrial fields. For example, in the construction industry, fiberglass-reinforced FRP can be used to make bridge components, building exterior finishes, etc.; in the transportation field, it can be used in the lightweight design of cars, airplanes and other vehicles; in marine engineering, It can be used to build ships and offshore facilities that are resistant to seawater erosion.

Characteristics of glass fiber and its manufacturing process

Glass fiber is a kind of slender fiber formed by high-speed rotation or stretching of molten glass. This fiber has been widely used in many industrial fields due to its unique properties, such as high strength, low density, good insulation and chemical corrosion resistance. Especially in fiber reinforced plastic (FRP) materials, glass fiber, as the main reinforcing material, greatly improves the comprehensive performance of composite materials.

Basic definition and classification of glass fiber

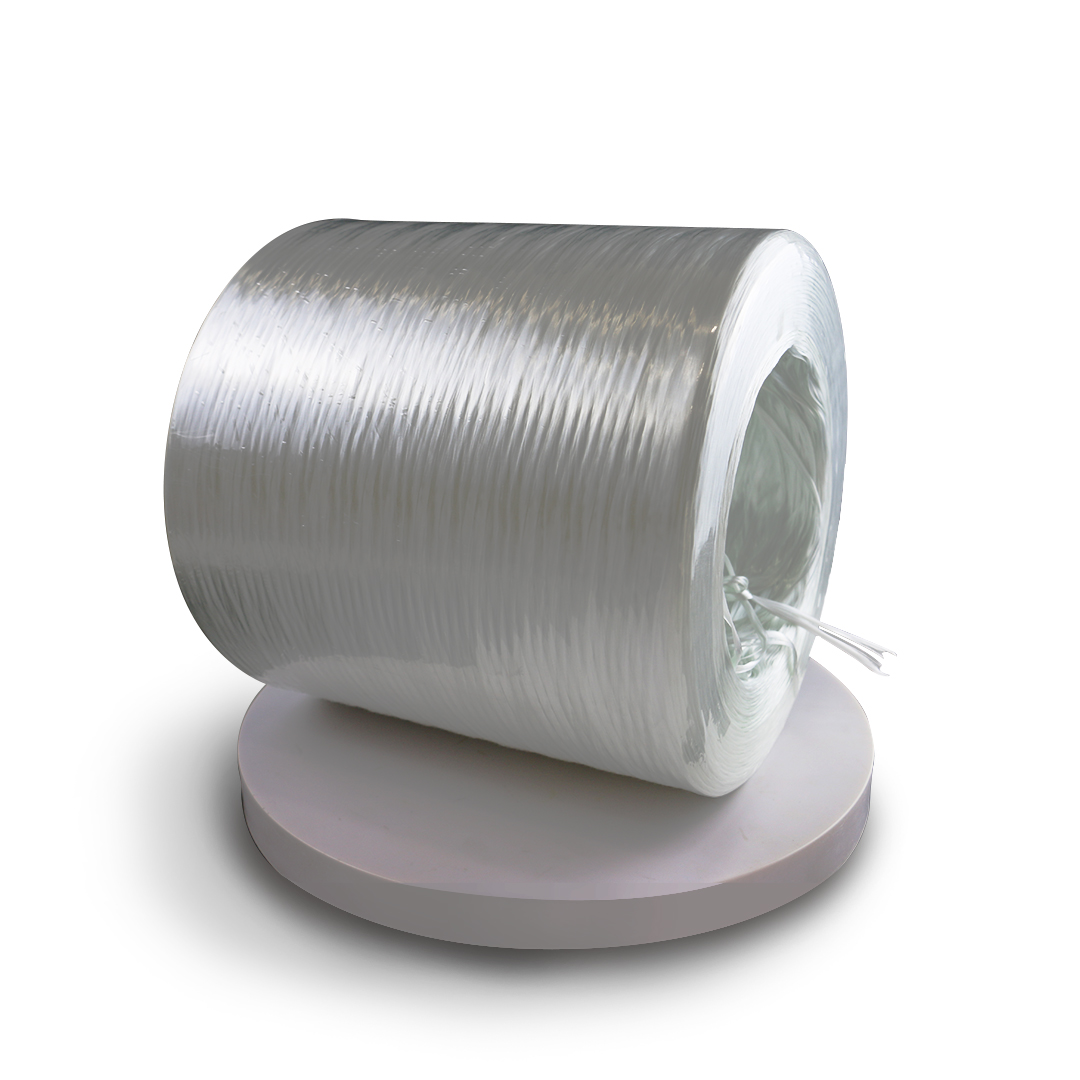

• Fiberglass roving: This is the most common form, usually composed of hundreds or even thousands of monofilament fibers in parallel, with a length of up to several thousand meters. The yarn can be twisted or untwisted according to different usage requirements and is widely used in the reinforcement layer of composite materials.

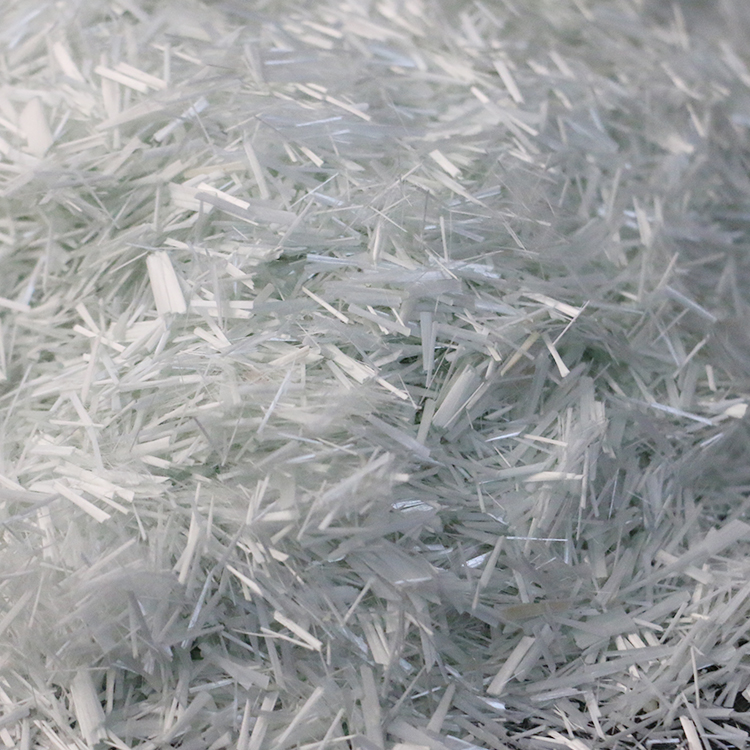

• Fiberglass chopped strands: The filaments are cut into small pieces of fiber of a certain length (usually a few millimeters to tens of millimeters). This type of fiber is mainly used for plastic fillers, which can increase the mechanical strength and hardness of plastic products.

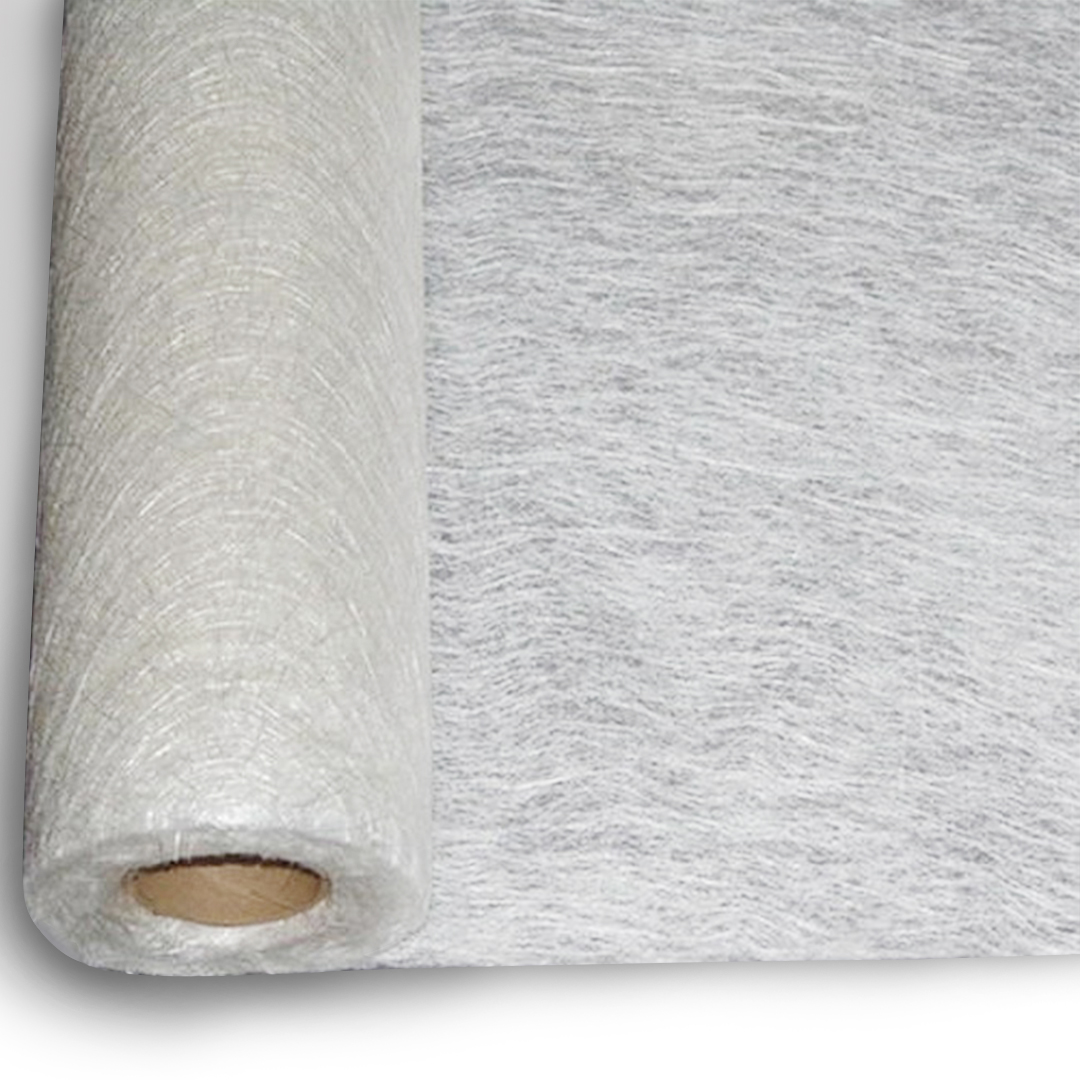

• Fiberglass mat: A non-woven fabric made of disordered short fibers or continuous fibers, which has good thermal insulation and sound insulation effects and is often used in thermal insulation materials or sound-absorbing panels.

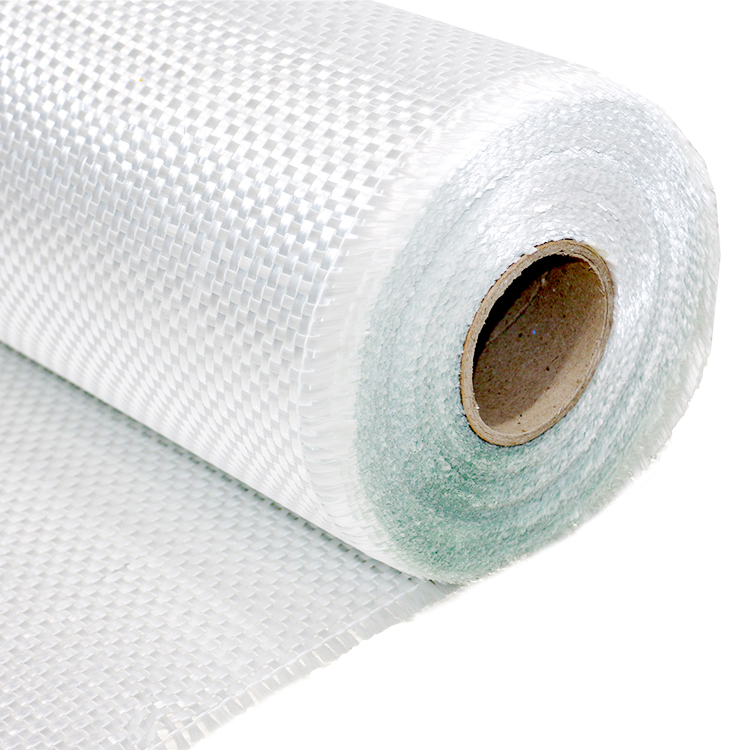

• Glass fiber cloth: The cloth is woven from glass fiber yarn through a textile process. It has good strength and flatness and is suitable for making composite materials with smooth surfaces.

Analysis of the physical and chemical properties of glass fiber

• Strength and modulus: The tensile strength of glass fiber is very high, usually reaching several hundred megapascals (MPa) per square millimeter. At the same time, its elastic modulus is also high, making it less likely to deform when subjected to stress.

• Density: The density of glass fiber is relatively low, generally between 2.3-2.6 g/cm³, which means it is lighter than most metal materials and is very suitable for applications that pursue lightweight.

• Heat resistance: Glass fiber has good high temperature resistance and can maintain its physical properties unchanged over a wide temperature range.

• Corrosion resistance: Except for certain specific acid and alkali environments, glass fiber has good resistance to most chemicals.

• Electrical insulation: Glass fiber is an excellent electrical insulating material that can effectively prevent the passage of current.

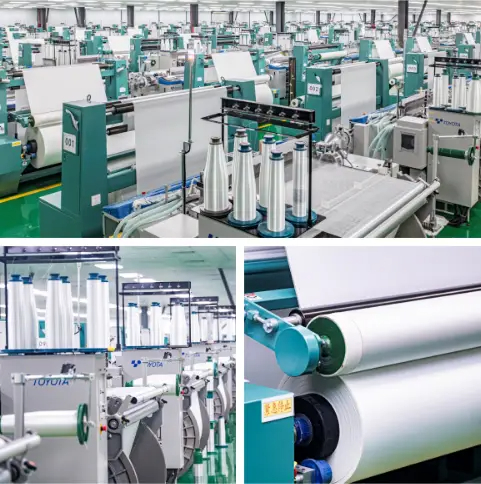

Production process and technology of glass fiber

• Raw material preparation: Select raw materials containing silicon dioxide (SiO₂), calcium oxide (CaO), sodium oxide (Na₂O) and other ingredients, mix them evenly, and send them into the furnace to heat to a high temperature state.

• Melting: Melt the above mixed raw materials at high temperature to form a fluid glass liquid.

• Molding: Use different methods to pull filaments from the molten glass liquid.

• Surface treatment: The surface of the drawn fiber will be coated with a protective agent (called a coating or impregnation agent) to enhance the bonding force between the fibers and prevent the fibers from sticking to each other.

• Finishing processing: Finally, the fibers are sorted into yarns, chopped strands, felts or cloths as needed, and packaged accordingly.

Composition and properties of FRP materials

Glass Fiber Reinforced Plastics (GFRP) is a type of high-performance material composed of continuous or discontinuous fibers and a polymer matrix. FRP not only has the advantage of lightweight, but also has excellent mechanical properties and corrosion resistance, which makes it widely used in aerospace, automotive industry, construction, marine engineering and other fields.

Definition and main components of GFRP

• Reinforcement fiber: Reinforcement fiber is the skeleton of FRP material, which provides the main mechanical properties of composite materials. Commonly used reinforcing fibers include glass fiber (GF), carbon fiber (CF), aramid fiber (KF), etc. Among them, glass fiber occupies a dominant position in FRP due to its low cost and easy processing.

• Resin matrix: The function of the resin matrix is to bond the dispersed fibers into a whole and protect the fibers from the influence of the external environment. Commonly used resins include epoxy resin (EP), polyester resin (UP), vinyl ester resin (VE), phenolic resin (PF), etc. The choice of resin depends on the performance requirements and use conditions of the final product.

Common resin types

• Epoxy resin (EP): Epoxy resin is known for its excellent mechanical properties, good heat resistance and chemical stability. It is suitable for application scenarios that require high strength and high modulus, such as aircraft parts, high-end sports equipment, etc.

• Polyester resin (UP): Polyester resin has low cost, fast curing speed, and is easy to operate. It is suitable for mass-produced FRP products, such as auto parts, construction panels, etc.

• Vinyl ester resin (VE): Vinyl ester resin has good chemical resistance and high heat resistance, and is especially suitable for chemical storage tanks, pipelines and other occasions that require corrosion resistance.

• Phenolic resin (PF): Phenolic resin has high heat resistance and flame retardancy, but is slightly inferior in mechanical properties. It is suitable for applications that require good heat resistance, such as insulation materials, fire doors, etc.

Application fields of glass fiber reinforced FRP

Construction industry

In the construction industry, GFRP materials are favored for their light weight, high strength, corrosion resistance, and easy processing. The specific applications are as follows:

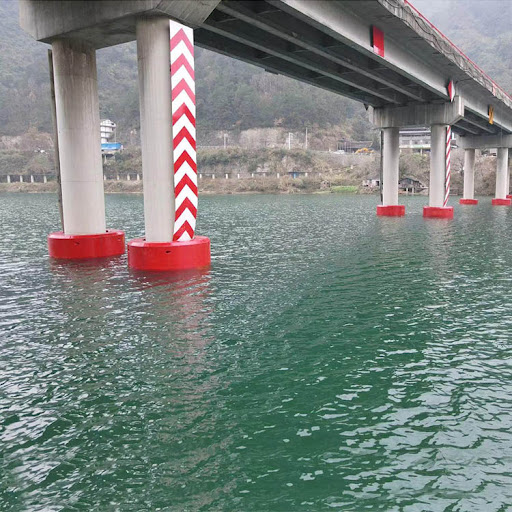

• Bridge construction: GFRP can be used to make bridge beams, sidewalk slabs, railings and other parts. Due to its light weight, it can reduce the requirements for the foundation structure, and its corrosion resistance allows bridges to remain intact for a long time in coastal or saline-alkali areas.

• Building reinforcement: In the reinforcement and renovation process of old buildings, GFRP can be used as an efficient reinforcement material for strengthening columns, beams, and slabs to improve the safety and service life of buildings.

• Curtain wall system: GFRP sheets can be used as exterior wall decoration of buildings. They are not only beautiful, but also have good weather resistance and UV resistance.

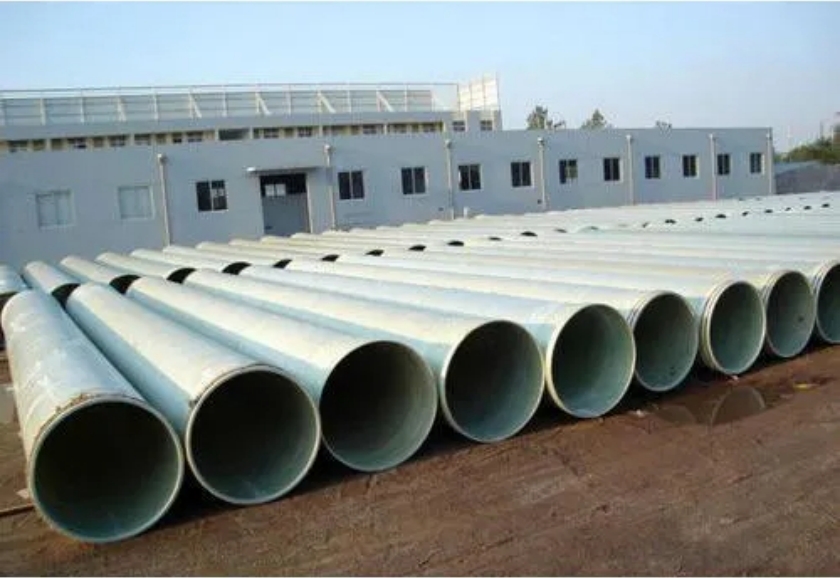

• Pipes and containers: In building water supply and drainage systems, GFRP pipes are widely used because of their corrosion resistance and good hydraulic performance.

Aerospace

The aerospace industry has extremely strict requirements for materials, requiring them to be both light and strong, while also having good heat resistance and fatigue resistance. GFRP is widely used in this area:

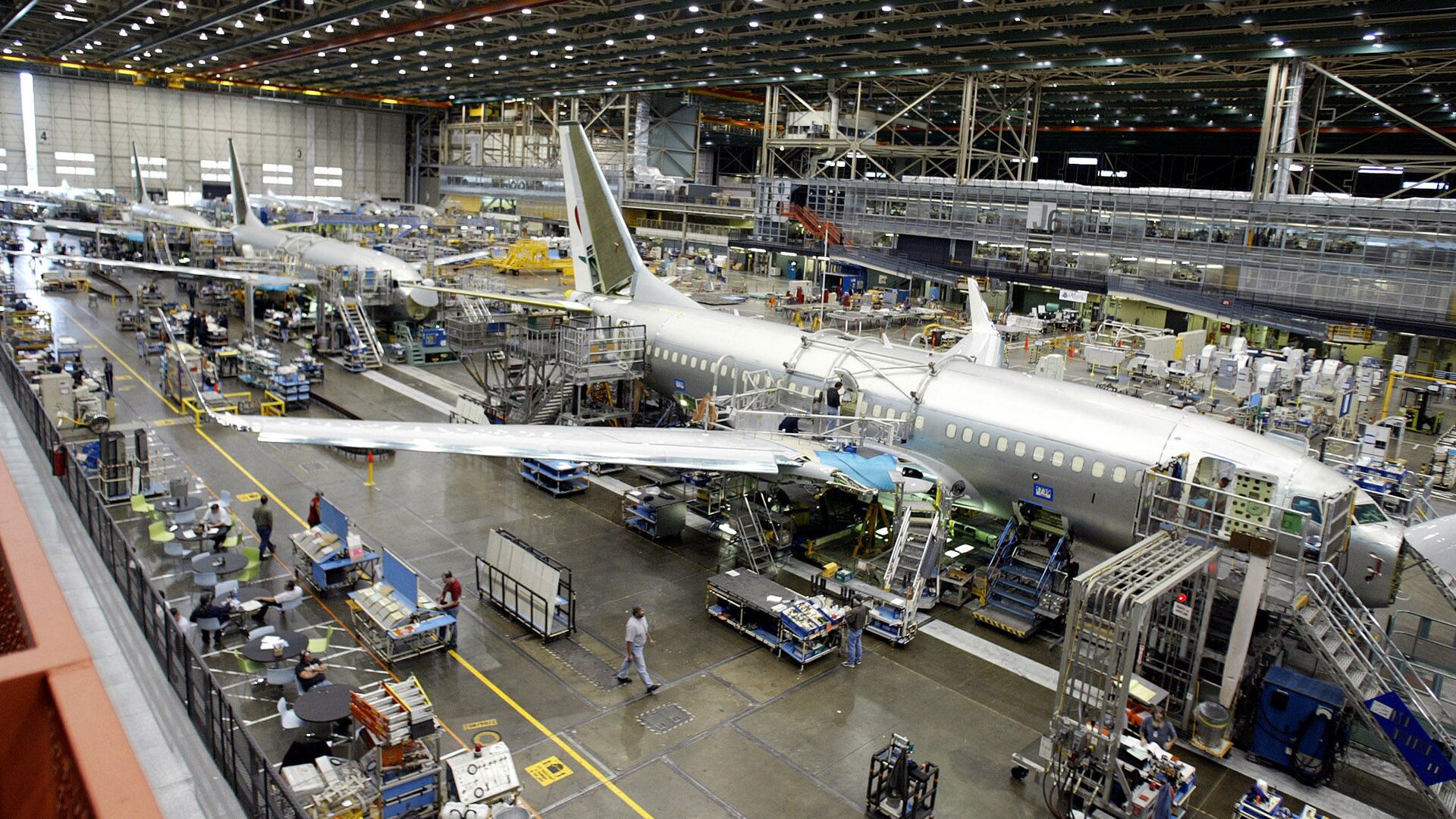

• Aircraft components: GFRP can be used to manufacture aircraft wings, fuselage shells, tail fins and other components to reduce the weight of the aircraft and improve fuel efficiency.

• Satellite components: In satellite structures, GFRP is used to make solar panel brackets, antenna reflectors and other components, which need to maintain stable working conditions in extreme space environments.

• Rocket shells: GFRP can also be used to manufacture rocket shells to help rockets withstand huge acceleration and temperature changes during launch.

Automobile manufacturing industry

With the implementation of energy conservation and emission reduction policies, the automotive industry has an increasing demand for lightweight materials. GFRP has been widely used in the automotive manufacturing industry due to its light weight and high strength:

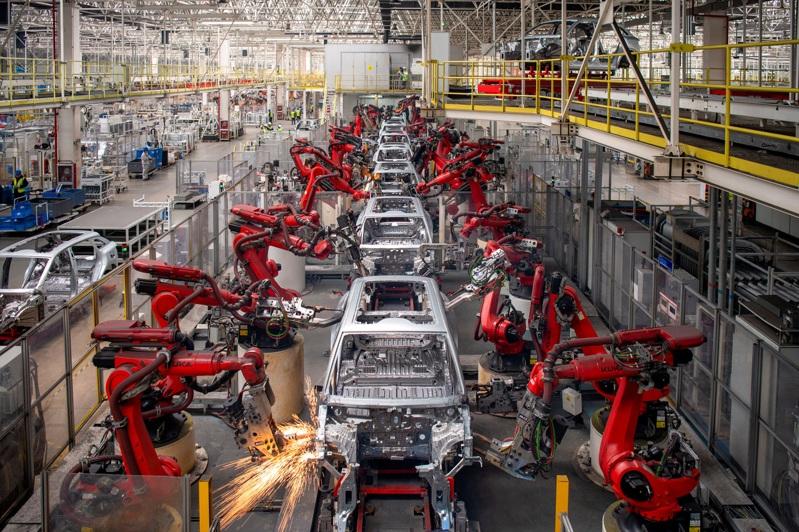

• Body parts: GFRP can be used to manufacture external covering parts such as body panels, bumpers, and hoods of automobiles to reduce the vehicle's own weight and thus reduce fuel consumption.

• Interior parts: Inside the car, GFRP can be used to make seats, instrument panel support frames and other parts, which are not only beautiful and durable, but also can reduce the weight of the entire vehicle.

• Structural parts: For some parts that require higher strength, such as chassis and frames, GFRP can also play its advantages and provide sufficient support.

Marine Engineering

The marine environment has extremely stringent requirements on materials. Not only do they need to have good corrosion resistance, but they also need to be able to withstand the pressure and erosion of seawater. GFRP is particularly outstanding in this regard:

• Ship structure: In shipbuilding, GFRP can be used in hulls, decks, bulkheads and other parts to improve the durability and safety of ships.

• Offshore platform: For offshore oil drilling platforms, wind power generation platforms and other facilities, GFRP materials can be used to build the main structure of the platform to ensure its stability in harsh sea conditions.

• Underwater equipment: In the fields of underwater detection and communications, GFRP can be used to make the shells of various equipment to protect the equipment from seawater corrosion.

Conclusion

As an excellent reinforcing material, glass fiber has the characteristics of high strength, low density, good insulation and corrosion resistance, which enables FRP materials to remain lightweight and durable while withstanding large external forces. FRP materials are widely used in many fields and play an important role.

 As a fiberglass manufacture in China, Yuniu Fiberglass Company stands out with its high-quality products and services. The company is committed to producing high-quality glass fiber yarn, chopped strands, felt and cloth products, which not only meet the market demand for high-performance materials, but also promote the development of FRP technology. Through continuous technological innovation and strict quality control, Yuniu Fiberglass Company ensures the superior performance of the glass fiber products provided and provides reliable support for all walks of life.

The application of fiberglass material in FRP is not only a major achievement in the field of materials science, but also an important driving force for the development of modern industry. With the continuous emergence of new materials and new technologies, glass fiber and its reinforced FRP materials will surely play their unique advantages in more fields and make greater contributions to the progress of human society.
